RW90P

Slim Frame Inward-Opening Window with Integrated Screen

(Optional Tilt-turn Opening Type)

Key Features and Advantages

More Slim

The more slim frame design delivers sleek lines and an ultimate view.

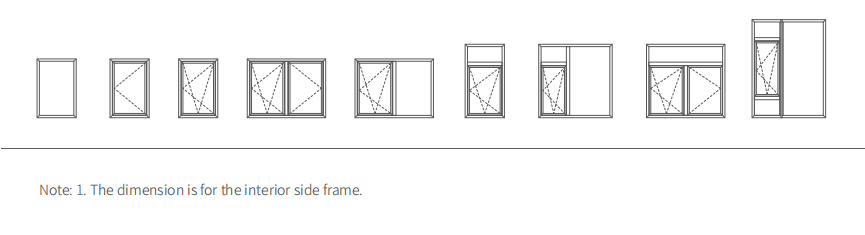

Versatile And Flexible Opening Types

Supports inward opening and tilt-and-turn available.

More Security

Auto protection activates for handle misused. Hidden chain and clamping locking system for more security.

Frame-Sash Same Horizon

The frame-sash in the same horizon design delivers a clean appearance, more suitable for contemporary architecture.

Slim Frame Inward-Opening Window with Integrated Screen main image with features

  • U-Factor

    ≥ 0.21 Btu/(h·ft²·F)

  • Screen

    Ntegrated Screen

  • Standard

    PET High-Transparency Mesh

  • Screen Height

    ≤ 82.68" (2100mm)

  • Screen Width

    ≤ 47.24" (1200mm)

Optional Frame

  • Standard Frame

    0.75" (19mm)

  • Large Frame

    1.50" (38mm)

  • Thickness Of Main Profile

    0.07" (1.8mm)

  • Glass Clamping Thickness

    ≤ 1.22" (31mm)

  • Load Bearing Of Sash

    ≤ 220.46lb (100kg)

  • Maximum Size Of Sash

    Width ≤ 47.24" (1200mm), Height ≤ 82.68" (2100mm)

  • Water Penetration

    720pa (15.04 psf)

  • Air Leakage

    ≤1L/S/m² (0.2cfm/ft²)

  • Structural Test Pressure

    ＜ 7200pa (150.38 psf)

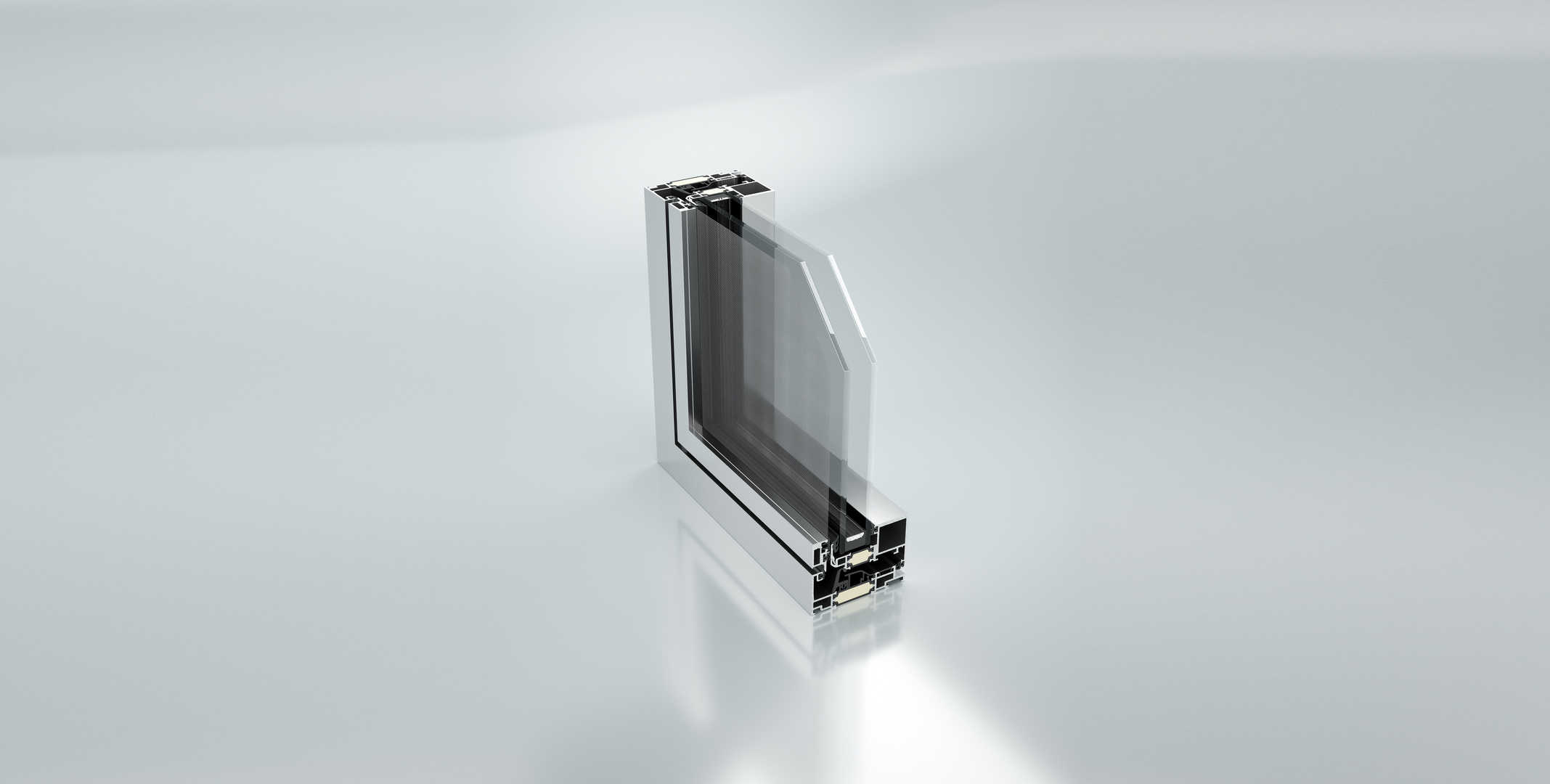

Product detail image
Product detail image
