RD70

Side Hinged Door

(Optional Smart Lock)

Key Features and Advantages

Durability And Long-Lasting Performance

200,000 repeat times without damage.

More Openable Options

The same hardware system and structural platform support various openable options, single sash, double sash, open outward and open inward.

More Security

Mushroom-head locking points, multi-point locking fitting and secure hardware system for anti-mishandle engineering and anti-prying performance.

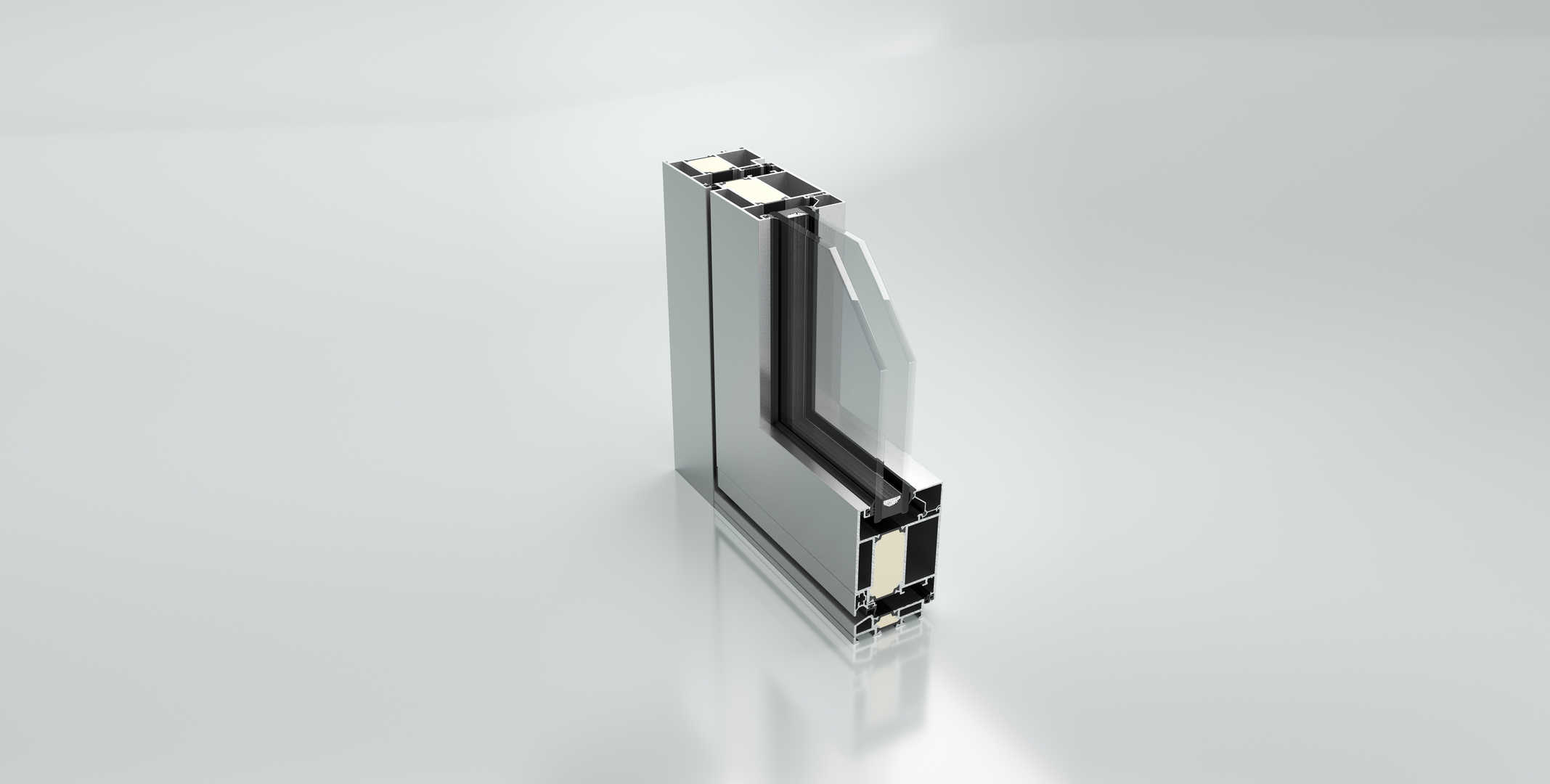

Side Hinged Door main image with features

  • Thickness Of Main Profile

    0.9" (2.2mm)

  • Maximum Size Of Sash

    Width ≤ 39.37" (1000mm) Height ≤ 98.43" (2500mm)

  • Load Bearing Of Sash

    ≤ 264.55lb (120kg)

  • Glass Clamping Thickness

    ≤ 1.89" (48mm)

  • Water Penetration

    Lower Frame A: 100 pa HD100A: 720 pa

  • Lower Frame A

    2.09 psf HD100A: 15.04 psf)

  • Air Leakage

    ≤1L/S/m² (0.2cfm/ft²)

  • Structural Test Pressure

    ＜ 7200pa (150.38 psf)

  • U-Factor

    ≥ 0.26 Btu/(h·ft²·F）

Optional Frame

  • Outward Standard Frame

    2.72" (69mm)

  • Outward Narrow Frame

    1.93" (49mm)

  • Inward Standard Frame

    1.93" (49mm)

  • Inward Narrow Frame

    1.14" (29mm)

Product detail image
Product detail image
